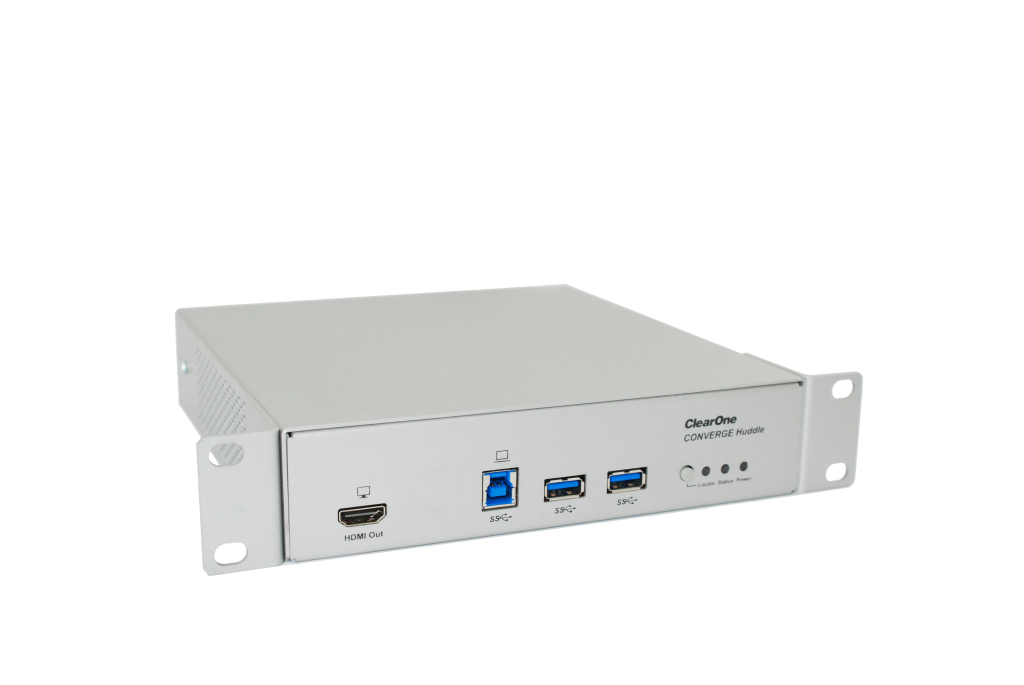

ClearOne CONVERGE® Huddle je profesionalni audio DSP mikser namenjen današnjim potrebama poslovnih timova i primeni u takozvanim “Huddle Room“-ovima i manjim konferencijskim salama

With CONVERGE Huddle, audio and video collaboration applications can be accomplished through a single cable connection to users’ Bring Your Own Devices (BYOD), such as laptops, tablets, and smartphones that run applications such as Spontania®, Skype®, Skype for Business, etc.

What Else? We Have The Best Support Around

Audio Signal Processing

  • Next-gen Acoustic Echo Cancellation processing
  • Distributed Echo Cancellation® on every mic input
  • Noise Cancellation with Adaptive-Ambience
  • Acoustic Intelligence with faster convergence

Bring Your Own Application

  • PC-based video conferencing
  • PC-based audio conferencing
  • Audio conferencing via mobile devices
  • In-room wired presentation

Clutter-Free Connection

  • Connects laptop via single USB 3.0 connection*#
  • Connects display screen, camera, mic and speaker
  • Connects PC / mobile device through Bluetooth (future)

Simple Configuration

  • User-friendly Pro CONSOLE® software
  • Pre-configured template
  • Auto-discovery of devices
  • System monitoring and troubleshooting

Flexibility

  • Compatible with ClearOne or any 3rd party camera
  • Compatible with ClearOne or any 3rd party mic
  • Compatible with ClearOne or any 3rd party speaker

Compact Form Factor

  • Half rack width, 1RU rack height
  • Flexible mounting under a conference table, or in a closet, rack or on the wall, or VESA mounting
KONTAKT Telemet
HUDDLE ROOM Audio DSP

HUDDLE ROOM Audio DSP

TEHNIČKE KARAKTERISTIKE

MIC/LINE INPUTS & OUTPUTS

Inputs: 3 Channels balanced audio Mic/Line inputs with AEC, 1 Channel balanced audio Line input without AEC, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

Line Outputs: 2 Channel Balanced audio Line outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

Frequency Response: 20Hz – 22kHz @ 0dBu, +/- 0.5dBu

EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs = 150Ω, -126dBu

THD + N (Total Harmonic Distortion + Noise):

• 20Hz – 22kHz @ 0dBu, line level, <0.01%

• 20Hz – 22kHz @ -56dBu, mic level, <0.2%

Dynamic Range: 20Hz – 20kHz @ 0dB, >105dB Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

Input Impedance: Balanced (line to ground), 2.2kΩ, 1%

Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain

Maximum Input Level: -65dBu to 20dBu

Phantom Power: 48V, Impedance 6.81kΩ

Output Impedance: Balanced (line to ground), 95Ω, 1%

Output Level: 0dBu (Nominal), 20dBu (Max)

HEADSET AUDIO

Port Type: 3.5mm TRRS connector

Frequency Response:

• Headset In: 20Hz – 22kHz, +/- 3dB

• Headset Out: 20Hz – 22kHz, +/- 1dB

THD + N (Total Harmonic Distortion + Noise):

• Headset In: 20Hz – 22kHz @ -7.782dBu nominal, <0.01%

• Headset Out: 20Hz – 22kHz @ 0dBu, <0.2% Dynamic Range: 20Hz – 20kHz @ 0dB, >95dB

USB 3.0 TYPE-B

Location: Front Panel

Number of Ports: 1

Devices: PC/laptop/Mac/VC Appliance

Networks: For Audio/Video and Network

USB 3.0 TYPE-A

Location: Front Panel

Number of Ports: 2

Devices: Camera

Compatible: USB 2.0

USB Power Sourcing: 5V @ 500mA each

NETWORK PASSTHROUGH

Port Type: RJ-45, 10/100/1000Mbps, passthrough to USB-B 3.0

EXPANDER

Ports Type: RJ-45 (Cat5e or Cat6)

Expander Out:  Proprietary Peripheral Bus Cable: Solid core, factory terminated Cat 5e or 6 cable Distance: Up to 200’ (60M) Device: Bluetooth Expander (Future)

AMPLIFIER OUTPUT

Type: 5.08mm Black Header, Male, Phoenix type Euroblock

Speaker Output Port: Dual binding posts

Audio: 2 Channels

Output Power: 10W Max, 8Ω load

Frequency Response: 20Hz – 22kHz @ 10dBu, +/- 0.5dBu

THD + N (Total Harmonic Distortion + Noise): 20Hz – 22kHz @ 10dBu, 1W, <0.3%

Dynamic Range: 20Hz – 22kHz @ 20dB, >102dB with 20kHz digital low pass filter

Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor, < -70dB

VIDEO

Port Type: HDMI output connector

Location: Front Panel

Resolutions:

• 1600 x 1200p @ 60Hz, 4:3 ratio

• 1920 x 1200p @ 60Hz, 16:10 ratio

• 2560 x 1440p @ 60Hz, 16:9 ratio

LEDs

Location: Front Panel

Status LED: Blue / Red

Locate LED: Blue / Red

Power LED: Blue

ETHERNET

Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

POE, POWER & THERMAL

Power Type: PoE

Port Type: RJ-45

Power Source: PoE power injector (Midspan), or PoE Ethernet Network Switch (Endspan) IEEE 802.3at, Mode A or B

Mains Voltage: 100-240V AC, 50/60Hz

Power Consumption: 34 Watts Typical

Thermal: 116 BTU/Hr Typical Operating Temperature: 14°F (-10°C) to 104°F (40°C) Ambient Temperature

RESET

Factory Reset: Press continuously for ~10 seconds.

DIMENSION & WEIGHT

Width x Depth x Height: 7.52” x 7.83” x 1.73” (191mm x 199mm x 44mm)

Unit Weight: 2.9 lbs (1.32 kg) (Approximately)
